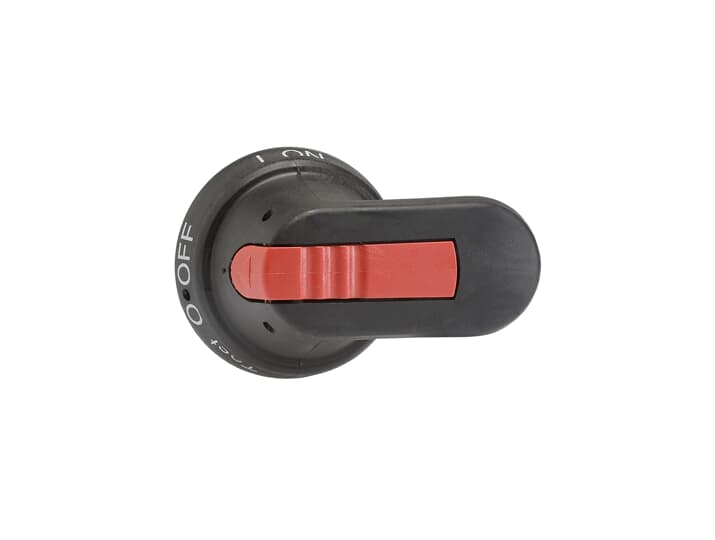

ABB 1SCA022399R8110

Descrizione del Prodotto

La maniglia rotativa ABB modello OHB65J6T, codice prodotto 1SCA022399R8110, è progettata per l’uso con sezionatori della serie OT. Presenta una lunghezza di 65 mm e una colorazione nera. ([it.rs-online.com](https://it.rs-online.com/web/p/manopole-rotanti/7275850?utm_source=openai))

Caratteristiche Principali

Questa maniglia offre le seguenti caratteristiche:

• Grado di protezione IP65, garantendo resistenza alla polvere e all’acqua. ([it.rs-online.com](https://it.rs-online.com/web/p/manopole-rotanti/7275850?utm_source=openai))
• Possibilità di bloccaggio con tre lucchetti nella posizione OFF, assicurando sicurezza durante le operazioni di manutenzione. ([electrika.com](https://www.electrika.com/catalogues/ABB-Switchgear-Products/switch-disconnectors/operating-handles–pistol-type/1sca022399r8110/part/262946?utm_source=openai))
• Interblocco della porta in posizione ON, impedendo l’apertura accidentale durante il funzionamento. ([electrika.com](https://www.electrika.com/catalogues/ABB-Switchgear-Products/switch-disconnectors/operating-handles–pistol-type/1sca022399r8110/part/262946?utm_source=openai))
• Fissaggio a vite dal lato posteriore della maniglia, senza viti sul fronte, garantendo un doppio isolamento. ([electrika.com](https://www.electrika.com/catalogues/ABB-Switchgear-Products/switch-disconnectors/operating-handles–pistol-type/1sca022399r8110/part/262946?utm_source=openai))

Specifiche Tecniche

• Larghezza: 98 mm ([electrika.com](https://www.electrika.com/catalogues/ABB-Switchgear-Products/switch-disconnectors/operating-handles–pistol-type/1sca022399r8110/part/262946?utm_source=openai))
• Altezza: 45 mm ([electrika.com](https://www.electrika.com/catalogues/ABB-Switchgear-Products/switch-disconnectors/operating-handles–pistol-type/1sca022399r8110/part/262946?utm_source=openai))
• Profondità: 66 mm ([electrika.com](https://www.electrika.com/catalogues/ABB-Switchgear-Products/switch-disconnectors/operating-handles–pistol-type/1sca022399r8110/part/262946?utm_source=openai))
• Peso netto: 0,135 kg ([electrika.com](https://www.electrika.com/catalogues/ABB-Switchgear-Products/switch-disconnectors/operating-handles–pistol-type/1sca022399r8110/part/262946?utm_source=openai))
• Colore: Nero ([electrika.com](https://www.electrika.com/catalogues/ABB-Switchgear-Products/switch-disconnectors/operating-handles–pistol-type/1sca022399r8110/part/262946?utm_source=openai))
• Lunghezza maniglia: 65 mm ([electrika.com](https://www.electrika.com/catalogues/ABB-Switchgear-Products/switch-disconnectors/operating-handles–pistol-type/1sca022399r8110/part/262946?utm_source=openai))
• Tipo di maniglia: Pistol grip ([electrika.com](https://www.electrika.com/catalogues/ABB-Switchgear-Products/switch-disconnectors/operating-handles–pistol-type/1sca022399r8110/part/262946?utm_source=openai))
• Funzioni speciali: J6T ([electrika.com](https://www.electrika.com/catalogues/ABB-Switchgear-Products/switch-disconnectors/operating-handles–pistol-type/1sca022399r8110/part/262946?utm_source=openai))
• Grado di protezione: IP65 ([electrika.com](https://www.electrika.com/catalogues/ABB-Switchgear-Products/switch-disconnectors/operating-handles–pistol-type/1sca022399r8110/part/262946?utm_source=openai))
• Tipo di bloccaggio: Sì ([electrika.com](https://www.electrika.com/catalogues/ABB-Switchgear-Products/switch-disconnectors/operating-handles–pistol-type/1sca022399r8110/part/262946?utm_source=openai))

Conformità e Certificazioni

La maniglia è conforme alla Direttiva RoHS dell’UE 2011/65/EU e all’emendamento 2015/863 del 22 luglio 2019. ([electrika.com](https://www.electrika.com/catalogues/ABB-Switchgear-Products/switch-disconnectors/operating-handles–pistol-type/1sca022399r8110/part/262946?utm_source=openai))

Informazioni sull’Imballaggio

• Unità per confezione: 1 pezzo ([electrika.com](https://www.electrika.com/catalogues/ABB-Switchgear-Products/switch-disconnectors/operating-handles–pistol-type/1sca022399r8110/part/262946?utm_source=openai))
• Larghezza confezione: 70 mm ([electrika.com](https://www.electrika.com/catalogues/ABB-Switchgear-Products/switch-disconnectors/operating-handles–pistol-type/1sca022399r8110/part/262946?utm_source=openai))
• Profondità confezione: 100 mm ([electrika.com](https://www.electrika.com/catalogues/ABB-Switchgear-Products/switch-disconnectors/operating-handles–pistol-type/1sca022399r8110/part/262946?utm_source=openai))
• Altezza confezione: 50 mm ([electrika.com](https://www.electrika.com/catalogues/ABB-Switchgear-Products/switch-disconnectors/operating-handles–pistol-type/1sca022399r8110/part/262946?utm_source=openai))
• Peso lordo confezione: 0,14 kg ([electrika.com](https://www.electrika.com/catalogues/ABB-Switchgear-Products/switch-disconnectors/operating-handles–pistol-type/1sca022399r8110/part/262946?utm_source=openai))
• EAN confezione: 6417019141879 ([electrika.com](https://www.electrika.com/catalogues/ABB-Switchgear-Products/switch-disconnectors/operating-handles–pistol-type/1sca022399r8110/part/262946?utm_source=openai))

Applicazioni

Questa maniglia è adatta per l’uso con sezionatori montati su base e su guida DIN, in particolare con i modelli OT160EV…250 con diametro dell’albero di 6 mm. ([electrika.com](https://www.electrika.com/catalogues/ABB-Switchgear-Products/switch-disconnectors/operating-handles–pistol-type/1sca022399r8110/part/262946?utm_source=openai))

Note

Per ulteriori dettagli e documentazione tecnica, si consiglia di consultare il catalogo ABB o contattare il distributore autorizzato. ([electrika.com](https://www.electrika.com/catalogues/ABB-Switchgear-Products/switch-disconnectors/operating-handles–pistol-type/1sca022399r8110/part/262946?utm_source=openai))
