ABB 1SCA105365R1001

Descrizione del Prodotto

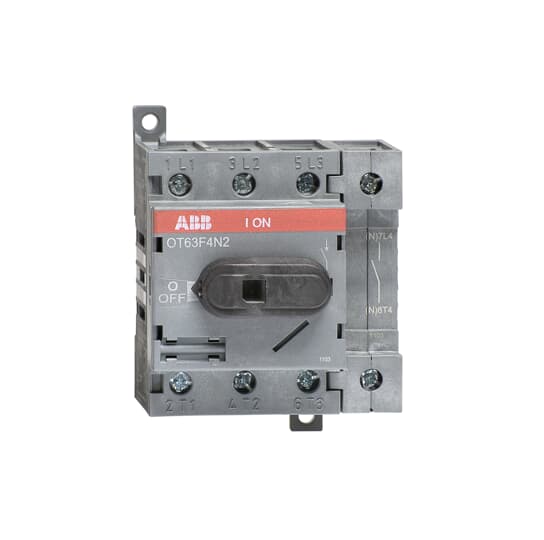

L’interruttore-sezionatore ABB OT63F4N2 (codice prodotto 1SCA105365R1001) è un dispositivo a 4 poli, operato frontalmente, montabile su base e su guida DIN. È progettato per fornire una disconnessione sicura e affidabile in applicazioni industriali. Il dispositivo è dotato di morsetti a vite protetti; maniglia e albero non sono inclusi. ([electrika.com](https://www.electrika.com/catalogues/ABB-Switchgear-Products-Fuses/Switchgear/Switch-Disconnectors/Switch-Disconnectors-Accessories/Fourth-Poles/fourth-poles/fourth-poles-simultaneous-function-with-the-main-contacts/fourth-poles-simultaneous-function-with-the-main-contacts/switchgear/switch-fuses/auxiliary-contacts/1sca022456r7410/switchgear/switch-fuses/os2001250-bs-front-operated-switch-fuses/abb-switchgear-products-fuses/switch-disconnectors/ot16160-base-door-mounted/1sca105365r1001/part/263164?utm_source=openai))

Specifiche Tecniche

– **Corrente Operativa Nominale AC-21A (Ie):**
– 380…415 V: 63 A
– 500 V: 63 A
– 690 V: 63 A
([electrika.com](https://www.electrika.com/catalogues/ABB-Switchgear-Products-Fuses/Switchgear/Switch-Disconnectors/Switch-Disconnectors-Accessories/Fourth-Poles/fourth-poles/fourth-poles-simultaneous-function-with-the-main-contacts/fourth-poles-simultaneous-function-with-the-main-contacts/switchgear/switch-fuses/auxiliary-contacts/1sca022456r7410/switchgear/switch-fuses/os2001250-bs-front-operated-switch-fuses/abb-switchgear-products-fuses/switch-disconnectors/ot16160-base-door-mounted/1sca105365r1001/part/263164?utm_source=openai))

– **Corrente Operativa Nominale AC-22A (Ie):**
– 380…415 V: 63 A
– 500 V: 63 A
– 690 V: 63 A
([electrika.com](https://www.electrika.com/catalogues/ABB-Switchgear-Products-Fuses/Switchgear/Switch-Disconnectors/Switch-Disconnectors-Accessories/Fourth-Poles/fourth-poles/fourth-poles-simultaneous-function-with-the-main-contacts/fourth-poles-simultaneous-function-with-the-main-contacts/switchgear/switch-fuses/auxiliary-contacts/1sca022456r7410/switchgear/switch-fuses/os2001250-bs-front-operated-switch-fuses/abb-switchgear-products-fuses/switch-disconnectors/ot16160-base-door-mounted/1sca105365r1001/part/263164?utm_source=openai))

– **Corrente Operativa Nominale AC-23A (Ie):**
– 380…415 V: 63 A
– 500 V: 45 A
– 690 V: 20 A
([electrika.com](https://www.electrika.com/catalogues/ABB-Switchgear-Products-Fuses/Switchgear/Switch-Disconnectors/Switch-Disconnectors-Accessories/Fourth-Poles/fourth-poles/fourth-poles-simultaneous-function-with-the-main-contacts/fourth-poles-simultaneous-function-with-the-main-contacts/switchgear/switch-fuses/auxiliary-contacts/1sca022456r7410/switchgear/switch-fuses/os2001250-bs-front-operated-switch-fuses/abb-switchgear-products-fuses/switch-disconnectors/ot16160-base-door-mounted/1sca105365r1001/part/263164?utm_source=openai))

– **Potenza Operativa Nominale AC-23A (Pe):**
– 220…240 V: 11 kW
– 400…415 V: 22 kW
– 500 V: 22 kW
– 690 V: 15 kW
([electrika.com](https://www.electrika.com/catalogues/ABB-Switchgear-Products-Fuses/Switchgear/Switch-Disconnectors/Switch-Disconnectors-Accessories/Fourth-Poles/fourth-poles/fourth-poles-simultaneous-function-with-the-main-contacts/fourth-poles-simultaneous-function-with-the-main-contacts/switchgear/switch-fuses/auxiliary-contacts/1sca022456r7410/switchgear/switch-fuses/os2001250-bs-front-operated-switch-fuses/abb-switchgear-products-fuses/switch-disconnectors/ot16160-base-door-mounted/1sca105365r1001/part/263164?utm_source=openai))

– **Corrente Termica Nominale in Aria Libera (Ith):**
– Θ = 40 °C: 63 A
([electrika.com](https://www.electrika.com/catalogues/ABB-Switchgear-Products-Fuses/Switchgear/Switch-Disconnectors/Switch-Disconnectors-Accessories/Fourth-Poles/fourth-poles/fourth-poles-simultaneous-function-with-the-main-contacts/fourth-poles-simultaneous-function-with-the-main-contacts/switchgear/switch-fuses/auxiliary-contacts/1sca022456r7410/switchgear/switch-fuses/os2001250-bs-front-operated-switch-fuses/abb-switchgear-products-fuses/switch-disconnectors/ot16160-base-door-mounted/1sca105365r1001/part/263164?utm_source=openai))

– **Corrente Termica Convenzionale (Ithe):**
– Involucro Completo: 63 A
([electrika.com](https://www.electrika.com/catalogues/ABB-Switchgear-Products-Fuses/Switchgear/Switch-Disconnectors/Switch-Disconnectors-Accessories/Fourth-Poles/fourth-poles/fourth-poles-simultaneous-function-with-the-main-contacts/fourth-poles-simultaneous-function-with-the-main-contacts/switchgear/switch-fuses/auxiliary-contacts/1sca022456r7410/switchgear/switch-fuses/os2001250-bs-front-operated-switch-fuses/abb-switchgear-products-fuses/switch-disconnectors/ot16160-base-door-mounted/1sca105365r1001/part/263164?utm_source=openai))

– **Tensione di Impulso Nominale (Uimp):**
– 8 kV
([electrika.com](https://www.electrika.com/catalogues/ABB-Switchgear-Products-Fuses/Switchgear/Switch-Disconnectors/Switch-Disconnectors-Accessories/Fourth-Poles/fourth-poles/fourth-poles-simultaneous-function-with-the-main-contacts/fourth-poles-simultaneous-function-with-the-main-contacts/switchgear/switch-fuses/auxiliary-contacts/1sca022456r7410/switchgear/switch-fuses/os2001250-bs-front-operated-switch-fuses/abb-switchgear-products-fuses/switch-disconnectors/ot16160-base-door-mounted/1sca105365r1001/part/263164?utm_source=openai))

– **Tensione di Isolamento Nominale (Ui):**
– Secondo IEC/EN 60664-1: 750 V
([electrika.com](https://www.electrika.com/catalogues/ABB-Switchgear-Products-Fuses/Switchgear/Switch-Disconnectors/Switch-Disconnectors-Accessories/Fourth-Poles/fourth-poles/fourth-poles-simultaneous-function-with-the-main-contacts/fourth-poles-simultaneous-function-with-the-main-contacts/switchgear/switch-fuses/auxiliary-contacts/1sca022456r7410/switchgear/switch-fuses/os2001250-bs-front-operated-switch-fuses/abb-switchgear-products-fuses/switch-disconnectors/ot16160-base-door-mounted/1sca105365r1001/part/263164?utm_source=openai))

– **Tensione Operativa Nominale:**
– Circuito Principale: 750 V
([electrika.com](https://www.electrika.com/catalogues/ABB-Switchgear-Products-Fuses/Switchgear/Switch-Disconnectors/Switch-Disconnectors-Accessories/Fourth-Poles/fourth-poles/fourth-poles-simultaneous-function-with-the-main-contacts/fourth-poles-simultaneous-function-with-the-main-contacts/switchgear/switch-fuses/auxiliary-contacts/1sca022456r7410/switchgear/switch-fuses/os2001250-bs-front-operated-switch-fuses/abb-switchgear-products-fuses/switch-disconnectors/ot16160-base-door-mounted/1sca105365r1001/part/263164?utm_source=openai))

– **Capacità di Chiusura in Cortocircuito Nominale (Icm):**
– 690 V: 2,1 kA
([electrika.com](https://www.electrika.com/catalogues/ABB-Switchgear-Products-Fuses/Switchgear/Switch-Disconnectors/Switch-Disconnectors-Accessories/Fourth-Poles/fourth-poles/fourth-poles-simultaneous-function-with-the-main-contacts/fourth-poles-simultaneous-function-with-the-main-contacts/switchgear/switch-fuses/auxiliary-contacts/1sca022456r7410/switchgear/switch-fuses/os2001250-bs-front-operated-switch-fuses/abb-switchgear-products-fuses/switch-disconnectors/ot16160-base-door-mounted/1sca105365r1001/part/263164?utm_source=openai))

– **Corrente di Breve Durata Nominale (Icw):**
– Per 1 s: 1,5 kA
([electrika.com](https://www.electrika.com/catalogues/ABB-Switchgear-Products-Fuses/Switchgear/Switch-Disconnectors/Switch-Disconnectors-Accessories/Fourth-Poles/fourth-poles/fourth-poles-simultaneous-function-with-the-main-contacts/fourth-poles-simultaneous-function-with-the-main-contacts/switchgear/switch-fuses/auxiliary-contacts/1sca022456r7410/switchgear/switch-fuses/os2001250-bs-front-operated-switch-fuses/abb-switchgear-products-fuses/switch-disconnectors/ot16160-base-door-mounted/1sca105365r1001/part/263164?utm_source=openai))

– **Corrente di Cortocircuito Condizionale Nominale (Inc):**
– Fusibile 100 A, ≤415 V: 50 kA
– Fusibile 100 A, 500 V: 100 kA
– Fusibile 80 A, 690 V: 50 kA
([electrika.com](https://www.electrika.com/catalogues/ABB-Switchgear-Products-Fuses/Switchgear/Switch-Disconnectors/Switch-Disconnectors-Accessories/Fourth-Poles/fourth-poles/fourth-poles-simultaneous-function-with-the-main-contacts/fourth-poles-simultaneous-function-with-the-main-contacts/switchgear/switch-fuses/auxiliary-contacts/1sca022456r7410/switchgear/switch-fuses/os2001250-bs-front-operated-switch-fuses/abb-switchgear-products-fuses/switch-disconnectors/ot16160-base-door-mounted/1sca105365r1001/part/263164?utm_source=openai))

– **Perdita di Potenza:**
– A Condizioni Operative Nominali per Polo: 2,8 W
([electrika.com](https://www.electrika.com/catalogues/ABB-Switchgear-Products-Fuses/Switchgear/Switch-Disconnectors/Switch-Disconnectors-Accessories/Fourth-Poles/fourth-poles/fourth-poles-simultaneous-function-with-the-main-contacts/fourth-poles-simultaneous-function-with-the-main-contacts/switchgear/switch-fuses/auxiliary-contacts/1sca022456r7410/switchgear/switch-fuses/os2001250-bs-front-operated-switch-fuses/abb-switchgear-products-fuses/switch-disconnectors/ot16160-base-door-mounted/1sca105365r1001/part/263164?utm_source=openai))

– **Grado di Inquinamento:**
– 3
([electrika.com](https://www.electrika.com/catalogues/ABB-Switchgear-Products-Fuses/Switchgear/Switch-Disconnectors/Switch-Disconnectors-Accessories/Fourth-Poles/fourth-poles/fourth-poles-simultaneous-function-with-the-main-contacts/fourth-poles-simultaneous-function-with-the-main-contacts/switchgear/switch-fuses/auxiliary-contacts/1sca022456r7410/switchgear/switch-fuses/os2001250-bs-front-operated-switch-fuses/abb-switchgear-products-fuses/switch-disconnectors/ot16160-base-door-mounted/1sca105365r1001/part/263164?utm_source=openai))

– **Tipo di Maniglia:**
– Manopola (maniglia e albero non inclusi)
([electrika.com](https://www.electrika.com/catalogues/ABB-Switchgear-Products-Fuses/Switchgear/Switch-Disconnectors/Switch-Disconnectors-Accessories/Fourth-Poles/fourth-poles/fourth-poles-simultaneous-function-with-the-main-contacts/fourth-poles-simultaneous-function-with-the-main-contacts/switchgear/switch-fuses/auxiliary-contacts/1sca022456r7410/switchgear/switch-fuses/os2001250-bs-front-operated-switch-fuses/abb-switchgear-products-fuses/switch-disconnectors/ot16160-base-door-mounted/1sca105365r1001/part/263164?utm_source=openai))

– **Posizione del Quarto Polo:**
– Lato Destro
([electrika.com](https://www.electrika.com/catalogues/ABB-Switchgear-Products-Fuses/Switchgear/Switch-Disconnectors/Switch-Disconnectors-Accessories/Fourth-Poles/fourth-poles/fourth-poles-simultaneous-function-with-the-main-contacts/fourth-poles-simultaneous-function-with-the-main-contacts/switchgear/switch-fuses/auxiliary-contacts/1sca022456r7410/switchgear/switch-fuses/os2001250-bs-front-operated-switch-fuses/abb-switchgear-products-fuses/switch-disconnectors/ot16160-base-door-mounted/1sca105365r1001/part/263164?utm_source=openai))

– **Tipo di Quarto Polo:**
– Commutato – Funzione Simultanea
([electrika.com](https://www.electrika.com/catalogues/ABB-Switchgear-Products-Fuses/Switchgear/Switch-Disconnectors/Switch-Disconnectors-Accessories/Fourth-Poles/fourth-poles/fourth-poles-simultaneous-function-with-the-main-contacts/fourth-poles-simultaneous-function-with-the-main-contacts/switchgear/switch-fuses/auxiliary-contacts/1sca022456r7410/switchgear/switch-fuses/os2001250-bs-front-operated-switch-fuses/abb-switchgear-products-fuses/switch-disconnectors/ot16160-base-door-mounted/1sca105365r1001/part/263164?utm_source=openai))

– **Meccanismo di Azionamento dell’Interruttore:**
– Meccanismo sulla Parte Superiore dell’Interruttore
([electrika.com](https://www.electrika.com/catalogues/ABB-Switchgear-Products-Fuses/Switchgear/Switch-Disconnectors/Switch-Disconnectors-Accessories/Fourth-Poles/fourth-poles/fourth-poles-simultaneous-function-with-the-main-contacts/fourth-poles-simultaneous-function-with-the-main-contacts/switchgear/switch-fuses/auxiliary-contacts/1sca022456r7410/switchgear/switch-fuses/os2001250-bs-front-operated-switch-fuses/abb-switchgear-products-fuses/switch-disconnectors/ot16160-base-door-mounted/1sca105365r1001/part/263164?utm_source=openai))

– **Distanza tra le Fasi:**
– Standard
([electrika.com](https://www.electrika.com/catalogues/ABB-Switchgear-Products-Fuses/Switchgear/Switch-Disconnectors/Switch-Disconnectors-Accessories/Fourth-Poles/fourth-poles/fourth-poles-simultaneous-function-with-the-main-contacts/fourth-poles-simultaneous-function-with-the-main-contacts/switchgear/switch-fuses/auxiliary-contacts/1sca022456r7410/switchgear/switch-fuses/os2001250-bs-front-operated-switch-fuses/abb-switchgear-products-fuses/switch-disconnectors/ot16160-base-door-mounted/1sca105365r1001/part/263164?utm_source=openai))

– **Posizione dei Terminali di Linea:**
– Ingresso Superiore – Uscita Inferiore
– Ingresso Inferiore – Uscita Superiore
([electrika.com](https://www.electrika.com/catalogues/ABB-Switchgear-Products-Fuses/Switchgear/Switch-Disconnectors/Switch-Disconnectors-Accessories/Fourth-Poles/fourth-poles/fourth-poles-simultaneous-function-with-the-main-contacts/fourth-poles-simultaneous-function-with-the-main-contacts/switchgear/switch-fuses/auxiliary-contacts/1sca022456r7410/switchgear/switch-fuses/os2001250-bs-front-operated-switch-fuses/abb-switchgear-products-fuses/switch-disconnectors/ot16160-base-door-mounted/1sca105365r1001/part/263164?utm_source=openai))

– **Modalità di Operazione:**
– Operato Frontalmente
([electrika.com](https://www.electrika.com/catalogues/ABB-Switchgear-Products-Fuses/Switchgear/Switch-Disconnectors/Switch-Disconnectors-Accessories/Fourth-Poles/fourth-poles/fourth-poles-simultaneous-function-with-the-main-contacts/fourth-poles-simultaneous-function-with-the-main-contacts/switchgear/switch-fuses/auxiliary-contacts/1sca022456r7410/switchgear/switch-fuses/os2001250-bs-front-operated-switch-fuses/abb-switchgear-products-fuses/switch-disconnectors/ot16160-base-door-mounted/1sca105365r1001/part/263164?utm_source=openai))

– **Standard:**
– IEC 60947-3 / UL 508 / CSA C22.2 No. 14
([electrika.com](https://www.electrika.com/catalogues/ABB-Switchgear-Products-Fuses/Switchgear/Switch-Disconnectors/Switch-Disconnectors-Accessories/Fourth-Poles/fourth-poles/fourth-poles-simultaneous-function-with-the-main-contacts/fourth-poles-simultaneous-function-with-the-main-contacts/switchgear/switch-fuses/auxiliary-contacts/1sca022456r7410/switchgear/switch-fuses/os2001250-bs-front-operated-switch-fuses/abb-switchgear-products-fuses/switch-disconnectors/ot16160-base-door-mounted/1sca105365r1001/part/263164?utm_source=openai))

– **Funzioni Speciali:**
– Nessuna
([electrika.com](https://www.electrika.com/catalogues/ABB-Switchgear-Products-Fuses/Switchgear/Switch-Disconnectors/Switch-Disconnectors-Accessories/Fourth-Poles/fourth-poles/fourth-poles-simultaneous-function-with-the-main-contacts/fourth-poles-simultaneous-function-with-the-main-contacts/switchgear/switch-fuses/auxiliary-contacts/1sca022456r7410/switchgear/switch-fuses/os2001250-bs-front-operated-switch-fuses/abb-switchgear-products-fuses/switch-disconnectors/ot16160-base-door-mounted/1sca105365r1001/part/263164?utm_source=openai))

– **Tipo di Montaggio:**
– Montaggio su Base
([electrika.com](https://www.electrika.com/catalogues/ABB-Switchgear-Products-Fuses/Switchgear/Switch-Disconnectors/Switch-Disconnectors-Accessories/Fourth-Poles/fourth-poles/fourth-poles-simultaneous-function-with-the-main-contacts/fourth-poles-simultaneous-function-with-the-main-contacts/switchgear/switch-fuses/auxiliary-contacts/1sca022456r7410/switchgear/switch-fuses/os2001250-bs-front-operated-switch-fuses/abb-switchgear-products-fuses/switch-disconnectors/ot16160-base-door-mounted/1sca105365r1001/part/263164?utm_source=openai))

– **Numero di Poli:**
– 4
([electrika.com](https://www.electrika.com/catalogues/ABB-Switchgear-Products-Fuses/Switchgear/Switch-Disconnectors/Switch-Disconnectors-Accessories/Fourth-Poles/fourth-poles/fourth-poles-simultaneous-function-with-the-main-contacts/fourth-poles-simultaneous-function-with-the-main-contacts/switchgear/switch-fuses/auxiliary-contacts/1sca022456r7410/switchgear/switch-fuses/os2001250-bs-front-operated-switch-fuses/abb-switchgear-products-fuses/switch-disconnectors/ot16160-base-door-mounted/1sca105365r1001/part/263164?utm_source=openai))

– **Sezione del Cavo:**
– Cu 1,5…35 mm²
([electrika.com](https://www.electrika.com/catalogues/ABB-Switchgear-Products-Fuses/Switchgear/Switch-Disconnectors/Switch-Disconnectors-Accessories/Fourth-Poles/fourth-poles/fourth-poles-simultaneous-function-with-the-main-contacts/fourth-poles-simultaneous-function-with-the-main-contacts/switchgear/switch-fuses/auxiliary-contacts/1sca022456r7410/switchgear/switch-fuses/os2001250-bs-front-operated-switch-fuses/abb-switchgear-products-fuses/switch-disconnectors/ot16160-base-door-mounted/1sca105365r1001/part/263164?utm_source=openai))

– **Grado di Protezione:**
– Frontale IP20
([electrika.com](https://www.electrika.com/catalogues/ABB-Switchgear-Products-Fuses/Switchgear/Switch-Disconnectors/Switch-Disconnectors-Accessories/Fourth-Poles/fourth-poles/fourth-poles-simultaneous-function-with-the-main-contacts/fourth-poles-simultaneous-function-with-the-main-contacts/switchgear/switch-fuses/auxiliary-contacts/1sca022456r7410/switchgear/switch-fuses/os2001250-bs-front-operated-switch-fuses/abb-switchgear-products-fuses/switch-disconnectors/ot16160-base-door-mounted/1sca105365r1001/part/263164?utm_source=openai))

– **Tipo di Terminale:**
– Terminali a Vite
([electrika.com](https://www.electrika.com/catalogues/ABB-Switchgear-Products-Fuses/Switchgear/Switch-Disconnectors/Switch-Disconnectors-Accessories/Fourth-Poles/fourth-poles/fourth-poles-simultaneous-function-with-the-main-contacts/fourth-poles-simultaneous-function-with-the-main-contacts/switchgear/switch-fuses/auxiliary-contacts/1sca022456r7410/switchgear/switch-fuses/os2001250-bs-front-operated-switch-fuses/abb-switchgear-products-fuses/switch-disconnectors/ot16160-base-door-mounted/1sca105365r1001/part/263164?utm_source=openai))

– **Coppia di Serraggio:**
– Secondo IEC 60947-1: 2 N·m
([electrika.com](https://www.electrika.com/catalogues/ABB-Switchgear-Products-Fuses/Switchgear/Switch-Disconnectors/Switch-Disconnectors-Accessories/Fourth-Poles/fourth-poles/fourth-poles-simultaneous-function-with-the-main-contacts/fourth-poles-simultaneous-function-with-the-main-contacts/switchgear/switch-fuses/auxiliary-contacts/1sca022456r7410/switchgear/switch-fuses/os2001250-bs-front-operated-switch-fuses/abb-switchgear-products-fuses/switch-disconnectors/ot16160-base-door-mounted/1sca105365r1001/part/263164?utm_source=openai))

– **Durata Meccanica:**
– 20.000 operazioni
([electrika.com](https://www.electrika.com/catalogues/ABB-Switchgear-Products-Fuses/Switchgear/Switch-Disconnectors/Switch-Disconnectors-Accessories/Fourth-Poles/fourth-poles/fourth-poles-simultaneous-function-with-the-main-contacts/fourth-poles-simultaneous-function-with-the-main-contacts/switchgear/switch-fuses/auxiliary-contacts/1sca022456r7410/switchgear/switch-fuses/os2001250-bs-front-operated-switch-fuses/abb-switchgear-products-fuses/switch-disconnectors/ot16160-base-door-mounted/1sca105365r1001/part/263164?utm_source=openai))

– **Tipo di Blocco:**
– Nessuno
