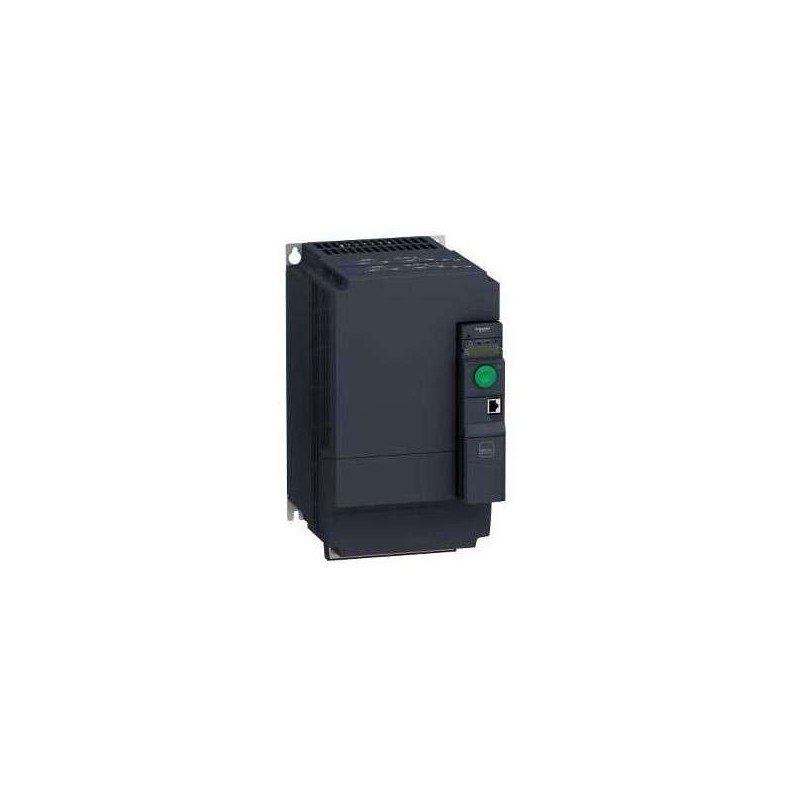

SCHNEIDER ATV320D15N4B

Descrizione del Prodotto

Il variatore di velocità Altivar Machine ATV320 è progettato per controllare motori asincroni e sincroni in applicazioni industriali e commerciali. Il modello ATV320D15N4B supporta motori con una potenza nominale fino a 15 kW e una tensione di alimentazione da 380 a 500 V. Il formato “book” consente un’installazione compatta, ideale per l’integrazione in quadri elettrici con spazio limitato. Questo variatore offre connettività avanzata, inclusi protocolli come CANopen e Modbus, facilitando l’integrazione in architetture di automazione senza necessità di apparecchiature di rete aggiuntive.

Caratteristiche Tecniche

– Potenza Motore: 15 kW (20 HP) ([se.com](https://www.se.com/us/en/product/ATV320D15N4B/variable-speed-drive-altivar-machine-atv320-15kw-380-to-500v-3-phases-book?utm_source=openai))
– Tensione di Alimentazione: 380…500 V AC, 3 fasi ([se.com](https://www.se.com/us/en/product/ATV320D15N4B/variable-speed-drive-altivar-machine-atv320-15kw-380-to-500v-3-phases-book?utm_source=openai))
– Corrente di Uscita Nominale: 33 A ([se.com](https://www.se.com/us/en/product/ATV320D15N4B/variable-speed-drive-altivar-machine-atv320-15kw-380-to-500v-3-phases-book?utm_source=openai))
– Frequenza di Uscita: 0,1…599 Hz ([se.com](https://www.se.com/us/en/product/ATV320D15N4B/variable-speed-drive-altivar-machine-atv320-15kw-380-to-500v-3-phases-book?utm_source=openai))
– Grado di Protezione: IP20 ([se.com](https://www.se.com/us/en/product/ATV320D15N4B/variable-speed-drive-altivar-machine-atv320-15kw-380-to-500v-3-phases-book?utm_source=openai))
– Filtri EMC: Classe C3 integrato ([se.com](https://www.se.com/us/en/product/ATV320D15N4B/variable-speed-drive-altivar-machine-atv320-15kw-380-to-500v-3-phases-book?utm_source=openai))
– Ingressi Analogici: 3 ([se.com](https://www.se.com/us/en/product/ATV320D15N4B/variable-speed-drive-altivar-machine-atv320-15kw-380-to-500v-3-phases-book?utm_source=openai))
– Ingressi Digitali: 7 ([se.com](https://www.se.com/us/en/product/ATV320D15N4B/variable-speed-drive-altivar-machine-atv320-15kw-380-to-500v-3-phases-book?utm_source=openai))
– Uscite Analogiche: 1 ([se.com](https://www.se.com/us/en/product/ATV320D15N4B/variable-speed-drive-altivar-machine-atv320-15kw-380-to-500v-3-phases-book?utm_source=openai))
– Uscite Digitali: 3 ([se.com](https://www.se.com/us/en/product/ATV320D15N4B/variable-speed-drive-altivar-machine-atv320-15kw-380-to-500v-3-phases-book?utm_source=openai))
– Uscite a Relè: 2 ([se.com](https://www.se.com/us/en/product/ATV320D15N4B/variable-speed-drive-altivar-machine-atv320-15kw-380-to-500v-3-phases-book?utm_source=openai))
– Protocolli di Comunicazione: Modbus, CANopen ([se.com](https://www.se.com/us/en/product/ATV320D15N4B/variable-speed-drive-altivar-machine-atv320-15kw-380-to-500v-3-phases-book?utm_source=openai))
– Dimensioni (L x A x P): 180 x 404 x 232 mm ([se.com](https://www.se.com/us/en/product/ATV320D15N4B/variable-speed-drive-altivar-machine-atv320-15kw-380-to-500v-3-phases-book?utm_source=openai))
– Peso: 6,9 kg ([se.com](https://www.se.com/us/en/product/ATV320D15N4B/variable-speed-drive-altivar-machine-atv320-15kw-380-to-500v-3-phases-book?utm_source=openai))

Funzionalità Principali

– Controllo Motore: Supporta motori asincroni e sincroni, inclusi motori IE2, IE3 e PM ([se.com](https://www.se.com/us/en/product/ATV320D15N4B/variable-speed-drive-altivar-machine-atv320-15kw-380-to-500v-3-phases-book?utm_source=openai))
– Connettività: Protocolli integrati Modbus e CANopen; opzioni per EtherNet/IP, Profinet, Profibus DP V1, EtherCAT e DeviceNet ([se.com](https://www.se.com/us/en/product/ATV320D15N4B/variable-speed-drive-altivar-machine-atv320-15kw-380-to-500v-3-phases-book?utm_source=openai))
– Funzioni di Sicurezza: Safe Torque Off (STO), Safe Stop 1 (SS1), Safely Limited Speed (SLS) ([se.com](https://www.se.com/us/en/product/ATV320D15N4B/variable-speed-drive-altivar-machine-atv320-15kw-380-to-500v-3-phases-book?utm_source=openai))
– Efficienza Energetica: Ottimizzato per applicazioni di ventilazione e pompaggio, con risparmi energetici fino al 30% ([se.com](https://www.se.com/us/en/product/ATV320D15N4B/variable-speed-drive-altivar-machine-atv320-15kw-380-to-500v-3-phases-book?utm_source=openai))
– Design Compatto: Formato “book” per un’installazione efficiente in spazi ristretti ([se.com](https://www.se.com/us/en/product/ATV320D15N4B/variable-speed-drive-altivar-machine-atv320-15kw-380-to-500v-3-phases-book?utm_source=openai))

Applicazioni Tipiche

– Macchine Industriali: Imballaggi, movimentazione materiali, attuatori meccanici, dispositivi di sollevamento ([se.com](https://www.se.com/us/en/product/ATV320D15N4B/variable-speed-drive-altivar-machine-atv320-15kw-380-to-500v-3-phases-book?utm_source=openai))
– Applicazioni Commerciali: Sistemi HVAC, pompe, ventilatori ([se.com](https://www.se.com/us/en/product/ATV320D15N4B/variable-speed-drive-altivar-machine-atv320-15kw-380-to-500v-3-phases-book?utm_source=openai))

Documentazione

Per ulteriori dettagli tecnici e istruzioni di installazione, consultare la scheda tecnica disponibile sul sito ufficiale di Schneider Electric. ([se.com](https://www.se.com/us/en/product/ATV320D15N4B/variable-speed-drive-altivar-machine-atv320-15kw-380-to-500v-3-phases-book?utm_source=openai))
